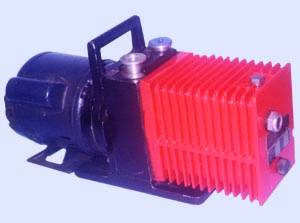

ACMEVAC Direct Drive, Oil-Sealed, Rotary High Vacuum Pumps are compact in size, as they are directly mounted on the motor flange. These pumps are light weight, well balanced and have exceptional size to performance ratio. These pumps have high pumping speeds and high water-vapor tolerance. The oil consumption is extremely low and they are air cooled.

APPLICATIONS
These pumps are used extensively in industry and laboratories for production of medium and high vacuum. They are used as backing pumps in series with roots blowers, diffusion pumps etc. These pumps find applications in vacuum coating, molecular distillation, vacuum metallurgy, freeze drying, vacuum impregnation, air conditioning and refrigeration, vacuum lifting devices, packaging machines etc.

SALIENT FEATURES

•	Solenoid operated anti-suck back valve to prevent oil in-rush into the system in the event of stopping the pump and power failure.
•	Provides uniform pumping speed.
•	Gas ballast facility has been provided. This helps in preventing condensation of vapors inside the pump when condensable va pours are being evacuated.
•	Suitably dimensioned inlet and outlet ducts to minimize conductance losses.
•	Inlet port is adapted for ISO type quick clamp fittings for ease of assembly and disassembly of pump units.
•	Vanes are spring loaded and chemically resistant. The non-metallic vanes are dimensionally stabilized, quiet in operation and possess long life.
•	Quality graded ferrous castings to improve wear resistance.
•	Aluminum alloy, light weight oil tank with fins is designed to provide heat dissipation. This helps in running the pump cool and quiet.
•	Heat treated Rotor and shaft to prevent solid particles from getting into the pump chamber.
•	Flexible high torque coupling with vibration dampening insert.
•	Pump is supplied with a sturdy steel base and anti-vibration mountings.

ACCESSORIES
FORE LINE TRAP : This is used to prevent back streaming of oil-vapors into clean pumping systems which employs two stage pumps operating below 0.001 Torr. This design employs ISO type quick clamp fittings for ease of assembly. INLET DESICCANT TRAP : This enables the removal of limited quantities of moisture of low va pour pressures. This design employs ISO type quick clamp fittings for ease of assembly. HANDLE.

SPECIFICATIONS

Details	Model 2SP-45D	Model 2SP-100D	Model 2SP-150D	Model 2SP-200D	Model 2SP-250D	Model 2SP-300D	Model 2SP-500D
No. of Stages	2	2	2	2	2	2	2
Nominal Pump Displacement Lts / min (m³/ h)	50	100	150	200	250	300	500
Pump Rotational Speed (RPM)	2880	2880	1440	1440	1440	1440	1440
Ultimate Vacuum (mm Hg A)	0.05	0.05	0.005	0.005	0.005	0.005	0.005
Motor: HP(1440 rpm, 50 hz)	0.25	0.33	0.33	0.50	0.50	0.75	2.00
Temp. rise over ambient degree centigrade	30-35	30-35	30-35	30-35	30-35	30-35	30-35

Note: Since improvements are made from time, designs and specifications are subject to change without prior notice
