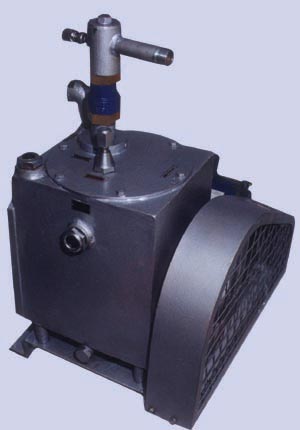

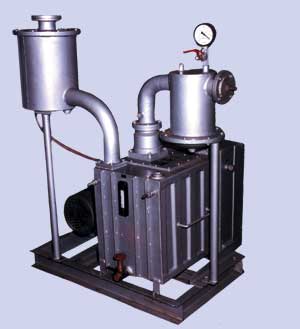

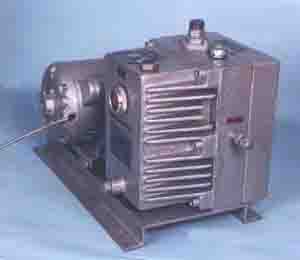

ROTARY HIGH VACUUM PUMPS


This series of vacuum pumps are rotary sliding vane, oil immersed type. The rotor, stator and end covers are made up of high nickel content cast iron and are machined to very fine tolerance. These pumps are ideal for handling dry and clean air. Gas ballast and belt guard are provided as standard equipment.

FEATURES
• Exhaust valve is designed to eliminate "rapping" noise.
• Unique construction of the pump totally eliminates the sucking of air through the shaft seal.
• Pumps can also be operated with SAE-30 motor oil instead of vacuum oil
• Water Cooling Arrangement can be provided if required at extra cost.

OPTIONAL ACCESSORIES (at extra cost)
Non-Return Valve
Moisture Trap
Vacuum Gauge with regulator

SINGLE STAGE
Ultimate Vacuum(on Mcleod Gauge) 0.05 mm Hg. A
Model Free Air Displacement
(ltrs/min) 		H.P
required 		Oil Charged
in ltrs
ISP- 45 50 0.25 2.5
ISP- 70 75 0.5 3.0
ISP- 100 100 0.5 4.0
ISP- 166 166 0.75 4.5
ISP- 350 350 1.0 5.5
ISP- 500 500 1.5 10
ISP- 750 750 1.5 20
ISP- 1000 1000 2 20
ISP- 1500 1500 3 35
ISP- 2000 2000 3 55
ISP- 3000 3000 5 55
ISP- 5000 5000 10 60
ISP- 6000 6000 10 60

DOUBLE STAGE
Ultimate Vacuum(on Mcleod Gauge) 0.005 mm Hg. A
Model Free Air Displacement
(ltrs/min) 		H.P
required 		Oil Charged
in ltrs
2SP- 45 50 0.25 3.5
2SP- 70 75 0.5 4.0
2SP- 100 100 0.5 4.5
2SP- 166 166 1 5.5
2SP- 350 350 1 6.5
2SP- 500 500 2 14.5
2SP- 750 750 2 24
2SP- 1000 1000 3 24
2SP- 1500 1500 5 35
2SP- 2000 2000 5 60
2SP- 3000 3000 7.5 68
2SP- 5000 5000 10 75
2SP- 6000 6000 10 75
• All flow and vacuum measurements are taken at the suction port of the pump
• +/- 10% tolerance on all readings unless specifically agreed in writing
• Motor above 1 HP are three phase
• Higher models of 5000 litres/min and above are available as "energy efficient" High Vacuum Pumping units
